Foundation GaN Fet 200 watt Hybrid amplifier - FA200

The FA 200 Hybrid utilizes some of the  latest GaN FET Class D technology. Paired with an enhanced version of our 12AU7 balanced input tube circuit feeding a 200 wpc output stage, it provides both tube richness and dynamic control.

The FA 200 features a new, rather unique tube input stage using 2 different circuits for each half of the 12AU7 dual triode tubes. Sporting a lively triode tube stage feeding the 200 watt GaN Fet amplifier stage which in turn delivers powerful and dynamic sonic performance with just  the right amount of tube euphonics to breath new life to your system.

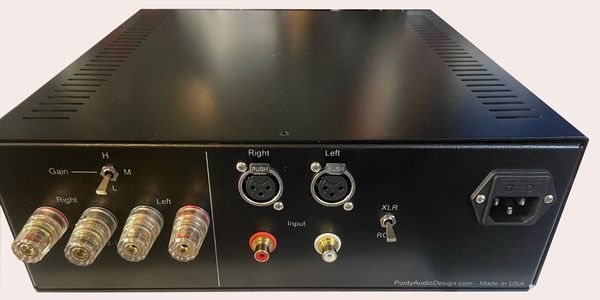

The FA 200 provides both balanced and single ended inputs as well as a 3 position [gain] switch on the rear panel. Low, medium and high gain are available to better match the amplifier with the rest of your system.

Model: FA200 Gallium Nitride Hybrid Class D Amplifier

• Number Of Channels: 2 Channel Stereo Power Amplifier
• RMS Power Per Channel 8 Ohms 150 WRMS
• Continuous RMS Power Per Channel 4 Ohms 200 WRMS Continuous
• Power Supply GaN FET: Bipolar LLC Resonant Converter
• Power Supply Tube Stage: Choke filtered CLC. High current Toroidal transformers
• Frequency Response: 20 Hz – 20 kHz, ±0.5 dB
• Input Impedance RCA: 100K
• Input Impedance XLR: 100K
• Voltage GainAdjustable (GaN FET Module):  26dB, 28dB, and 32dB
• Power Requirements: 115-125VAC / 220-240VAC Factory Set
• Dimensions (W x H x D) Inches 12.25" ″ X 4.5″ X 13″
